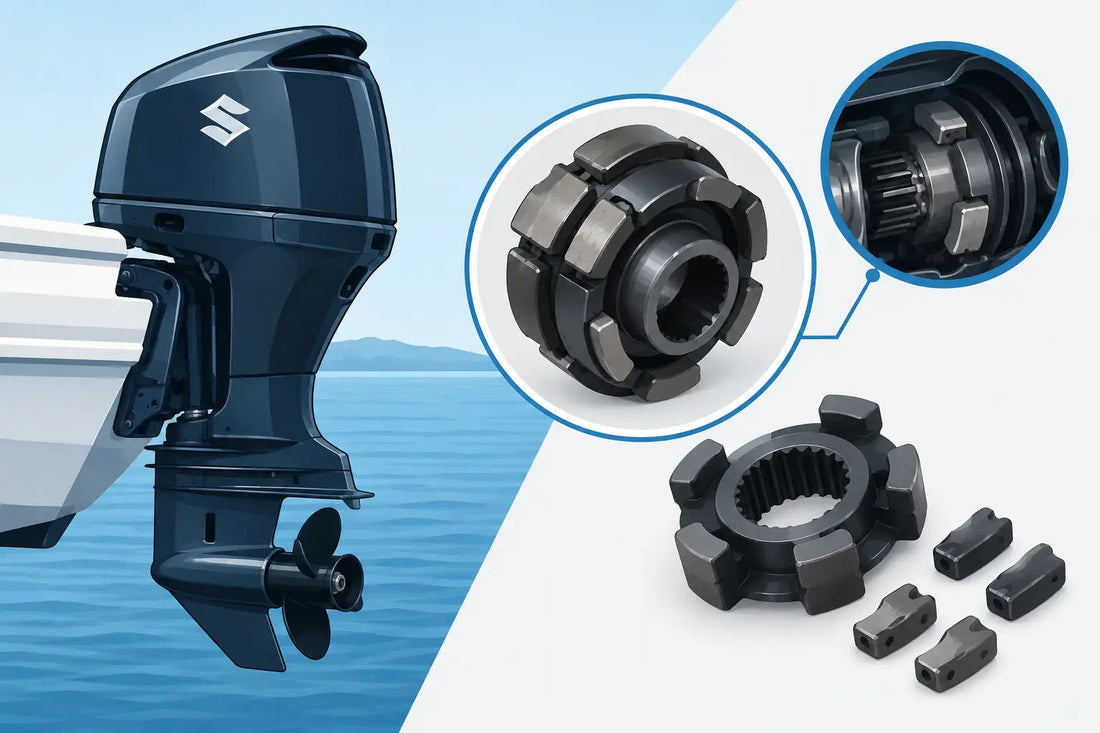

Guide to Suzuki Outboard Clutch Dogs and Wear

A shift lever that clicks into gear but lets the engine race is not a minor annoyance. It can be the first warning that the lower unit is no longer holding full engagement. This guide to Suzuki outboard clutch dogs explains what these small, hardened parts do, how to recognize wear, and why correct OEM fitment matters before a shifting problem becomes a gearcase repair.

Clutch dog damage is usually progressive. A boat may jump out of forward only under throttle, hesitate before reverse catches, or make a ratcheting sound when power is applied. Continuing to run it can round the matching engagement surfaces in the gear as well as the dog, turning a focused repair into a larger parts order.

What Suzuki Outboard Clutch Dogs Do

Inside a Suzuki outboard lower unit, the propeller shaft carries forward and reverse gears that rotate while the engine is running. The clutch dog slides on the shaft between those gears. When you move the remote control into forward or reverse, the shift mechanism moves the dog into the selected gear. Its engagement lugs lock the gear to the propeller shaft and transfer engine power to the propeller.

The clutch dog does not use friction material like a car transmission clutch. It is a positive mechanical coupling. That is why a healthy lower unit should shift decisively, particularly when the engine is at idle. The dog’s squared engagement faces and the matching faces inside the gear are designed to carry load together.

Suzuki designs vary by horsepower, year, shaft length, and gearcase family. A part that looks close is not automatically correct. Tooth count, spline arrangement, dog profile, gear dimensions, and associated shift components must match the exact engine application. Use the outboard model and serial number to identify the right parts before ordering.

Signs Your Clutch Dog May Be Worn

A worn clutch dog commonly announces itself under load rather than at the dock. The engine may engage forward normally at idle, then slip or kick out when the boat accelerates. When that happens, engine RPM rises quickly while boat speed falls off. Let off the throttle immediately rather than repeatedly forcing it back into gear.

Other symptoms can include a delayed shift into forward or reverse, a harsh clunk, intermittent engagement, or a grinding and ratcheting sensation as the gear tries to hold. These symptoms deserve attention, but they do not prove the clutch dog alone is at fault. Improper shift-cable adjustment, a worn shift rod, damaged linkage, a bent propeller shaft, or internal gear damage can create similar complaints.

Pay attention to when the problem occurs. A gearcase that jumps out only in forward may have forward-side engagement wear. A problem in both directions may point to linkage adjustment or a broader internal issue. If the issue began after an impact, inspect for propeller damage, leaking gear oil, or a bent shaft before assuming normal wear is the cause.

Why It Jumps Out of Gear

The engagement faces on a clutch dog and gear are manufactured with a deliberate geometry. Over time, incomplete engagement and repeated load can wear those faces into a ramped shape. Once they are rounded, propeller torque pushes the dog away from the gear instead of holding it engaged.

Shifting at elevated RPM is a common cause. So is a control cable that does not move the shift mechanism fully into gear. A cable can appear to work at the helm while still stopping short of full engagement at the engine. Corrosion, worn control components, or a shift rod that is not set to specification can leave the dog riding on the edge of the gear lugs.

A sudden propeller strike can also damage the drivetrain. Even if the outboard continues to run, an impact can transmit enough force through the shaft and gears to affect engagement components. Drain and inspect the gear oil if there is any doubt. Metal particles, water contamination, or a burnt odor are reasons to stop operating the engine and inspect further.

Inspect the Full Engagement System

Lower-unit service requires more than replacing the visibly worn component. Once the gearcase is apart, inspect the clutch dog, the selected gear or gears, the shift shaft and cam components, thrust washers, bearings, and the propeller shaft splines. Compare every component against the correct Suzuki parts diagram for the engine’s serial range.

Look closely at the dog lugs and the mating pockets in forward and reverse gears. Crisp, full contact faces are what you want to see. Rounded edges, chipped corners, blue heat discoloration, pitting, or uneven contact patterns indicate damage. If the gear engagement faces are worn, installing only a new dog may provide temporary improvement but will not restore a reliable lock under load.

Also inspect the shift mechanism before reassembly. The dog must travel fully into each gear, and the control cable must be adjusted so neutral, forward, and reverse positions align with the engine’s specified shift positions. Do not use cable adjustment to hide a worn internal component. Adjustment helps only when the parts are sound and the mechanism is otherwise correctly assembled.

Because gearcase work involves bearing preload, shimming, seals, torque specifications, and pressure testing, many owners choose a qualified marine technician for diagnosis and installation. Experienced mechanics still benefit from verifying the exact model and serial number before ordering. A correct OEM part cannot compensate for incorrect setup, but it gives the repair the intended dimensions and metallurgy from the start.

OEM Parts Protect the Repair

Clutch dogs and mating gears operate under shock loads every time the outboard shifts and whenever the propeller meets changing water resistance. This is not an area where an approximate fit is worth the risk. New OEM genuine Suzuki parts are built for the specified gearcase and designed to work with the matching gears, shafts, shims, and shift components.

For a complete repair, the parts list may include more than the clutch dog. Depending on inspection results, you may need a forward gear, reverse gear, shift components, propeller shaft seals, O-rings, gaskets, lock washers, and fresh Suzuki-specified gear oil. Replacing seals during disassembly is practical insurance against water entering the gearcase after the repair.

Buying by engine details avoids costly delays. Have the Suzuki model number, serial number, and, if available, the existing part number ready. This is especially important for older engines and production runs with mid-year changes. Al Hawra Marine helps Suzuki owners and repair shops find and order exact-fit OEM replacement parts without substituting general aftermarket components.

Preventing Repeat Clutch Dog Damage

The best prevention starts at the control handle. Shift positively at idle speed, pause briefly in neutral when changing direction, and avoid easing the lever slowly through the engagement point. A firm shift allows the dog to seat fully rather than chatter against the gear lugs.

Keep the shift cable and linkage in good condition. If shifting feels stiff, vague, or inconsistent, inspect and adjust it before it creates internal wear. Check gear oil at scheduled service intervals and after a propeller strike. Milky oil indicates water intrusion, while significant metal debris calls for immediate investigation.

Use the correct propeller and avoid operating with a damaged one. A bent or badly nicked propeller can create vibration and shock loading that travels directly into the gearcase. If the outboard hits an underwater object, do not assume that an undamaged-looking propeller means the lower unit is fine.

When to Stop Running the Outboard

Stop using the boat if it repeatedly jumps out of gear, ratchets under throttle, or produces metal debris in the gear oil. Each slip can further damage the dog and gear engagement faces. The repair cost usually rises with every outing after the first clear symptom.

A prompt inspection gives you the best chance of limiting replacement parts to the components that are actually worn. Identify your engine by model and serial number, confirm the lower-unit parts breakdown, and order genuine Suzuki components that match the application. A properly repaired gearcase should shift cleanly, hold gear under load, and let you get back on the water with confidence instead of wondering when it will slip again.
