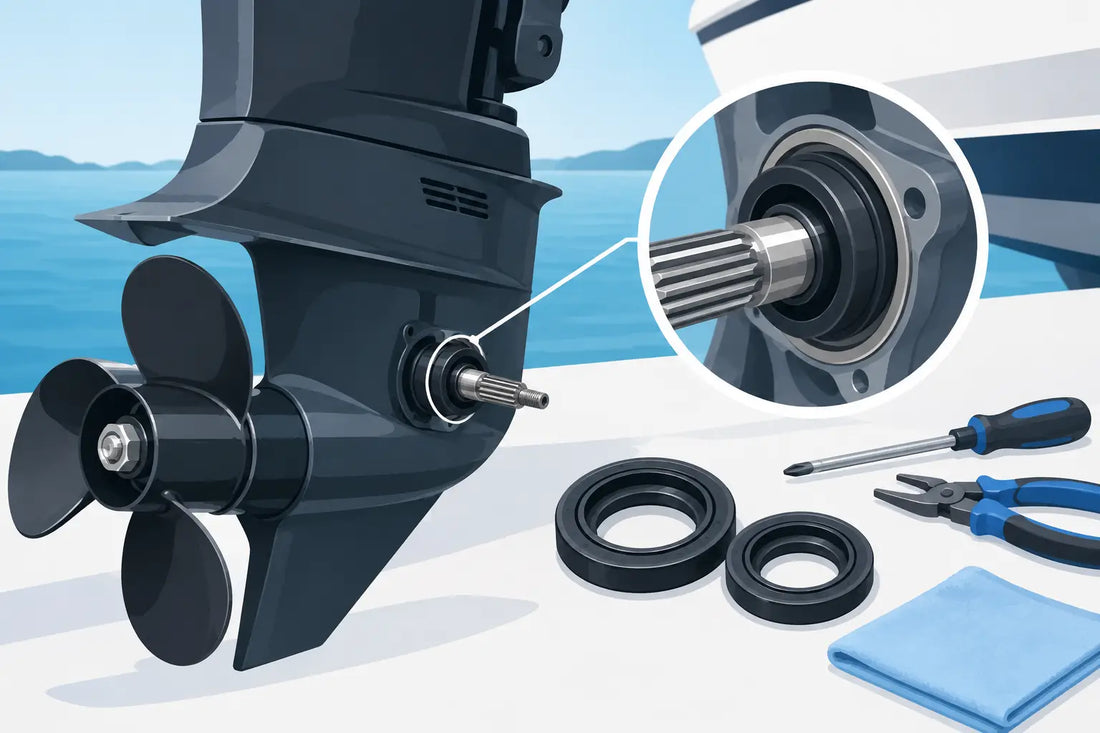

How to Replace Suzuki Propeller Shaft Seals

A fishing line wrapped behind the propeller can turn a simple service item into a gearcase repair bill. Line often cuts or overheats the seals around the propeller shaft, allowing water into the gear oil. If you need to replace Suzuki propeller shaft seals, act before contaminated oil, corrosion, or damaged gears put your outboard out of service.

This is a practical job for an owner or technician with the correct tools, a clean work area, and the service information for the exact Suzuki outboard model. The seals may look similar across engines, but fitment, carrier design, fasteners, and torque specifications can vary. Ordering by your model and serial number is the surest way to get the correct new OEM genuine Suzuki parts.

Know When Suzuki Propeller Shaft Seals Need Replacement

The most obvious warning sign is milky, gray, or creamy gear oil when the lower-unit drain screw is removed. Gear oil that has absorbed water loses its ability to protect bearings and gears. A small amount of water may point to a developing seal problem; a heavily emulsified oil points to a repair that should not wait.

Fishing line behind the propeller is another reason to inspect immediately, even if the oil still looks normal. Monofilament and braided line can pack tightly against the seal area. It can groove the propeller shaft, damage the seal lips, and allow leakage long before there is an obvious performance issue.

A visible oil sheen near the propeller, gear oil loss, or recurring water found during pressure testing can also indicate failed propeller shaft seals. Do not assume the propeller shaft seals are the only possible leak point. Shift-shaft seals, drain-screw gaskets, water-pump seals, and other gearcase components can cause similar symptoms. A proper pressure and vacuum test helps isolate the source before parts are installed.

Parts and Tools to Have Ready

Before disassembly, confirm the engine model, serial range, and lower-unit configuration. Suzuki uses model-specific components, and a seal that appears close is not an exact-fit substitute. OEM seals are made for the dimensions, materials, and operating conditions of the Suzuki gearcase. This matters because the seal lip must ride correctly on the shaft while resisting heat, gear oil, and water exposure.

For most jobs, plan to have the new propeller shaft seals, the applicable carrier O-rings or gaskets, fresh Suzuki-approved gear oil, and new drain and vent screw gaskets. If the shaft shows a groove where the seal runs, replacing seals alone may not stop the leak. Depending on the engine, the repair may require a shaft replacement or an approved repair solution.

You will generally need a propeller wrench, suitable socket and hand tools, a drain pan, seal puller, driver or installer sized for the seals, a plastic or brass scraper, clean shop towels, and gearcase pressure/vacuum test equipment. Some Suzuki models require a specific propeller shaft bearing carrier puller or holding tool. Trying to pry out a tight carrier with screwdrivers can scar the aluminum housing and create a larger problem.

How to Replace Suzuki Propeller Shaft Seals

Remove the propeller and inspect for line

With the engine secure and the ignition disabled, remove the propeller hardware in the correct order. Keep the thrust washer, spacers, nut, cotter pin, and washers organized exactly as removed. Propeller hardware varies by model, so do not rely on a generic arrangement when it is time to reassemble.

Pull the propeller straight off the shaft. Check the hub, splines, thrust washer, and the area behind the propeller for fishing line. Remove all line carefully. If line has melted into the seal area or cut a deep track in the shaft, document what you find before proceeding.

Drain and assess the gear oil

Drain the gearcase oil into a clean pan. Inspect its color and consistency and look for metal particles. A small amount of fine metallic paste on a magnetic drain plug can be normal wear, but chips, flakes, or larger fragments deserve further diagnosis. Water-contaminated oil should be replaced after the repair, but its presence also makes pressure and vacuum testing essential.

If the oil is severely milky or has been left contaminated for an unknown period, inspect the gearcase carefully for corrosion and bearing damage. Seal replacement stops a leak; it does not reverse damage already caused by water inside the unit.

Remove the bearing carrier correctly

The propeller shaft seals are commonly installed in or near the propeller shaft bearing carrier. Follow the service procedure for your Suzuki model to remove the carrier, retainer, and related components. Some carriers are secured with bolts, lock tabs, or threaded retainers. Others may be tightly seated due to corrosion.

Use the designated puller when the carrier does not come free easily. Apply controlled, even force. Avoid heat unless the model-specific service procedure permits it, and keep heat away from seals, paint, and nearby components. Once removed, inspect the carrier bore, O-rings, bearings, gears, and sealing surfaces for corrosion, pitting, or scoring.

Remove old seals without marking the carrier

Note the depth and orientation of each old seal before removal. Seal lips are normally oriented to retain gear oil and exclude water, but the exact arrangement must match the Suzuki parts diagram and service information for your engine. Taking a quick photo before removal can prevent an avoidable installation mistake.

Use a seal puller carefully, working against the seal body rather than the aluminum bore. Do not drag sharp tools across the carrier or shaft surface. Even a small scratch can become a leak path. Clean the bore completely after the old seals are out, removing old residue without using abrasive material that may damage the fit.

Inspect the propeller shaft sealing surface

Run a fingernail across the shaft where each seal lip rides. Light polishing may be acceptable when the surface has minor staining, but a groove you can feel is a warning. New seals installed over a grooved shaft can leak immediately or fail soon after launch.

Also inspect the shaft for corrosion, bends, damaged splines, and excessive play. A worn bearing or shaft movement can shorten seal life, even when new OEM seals are installed correctly. This is where a quick repair can become a carrier, bearing, or shaft repair. It depends on what the inspection reveals, not just what caused the initial leak.

Install new OEM seals squarely

Lubricate the seal lips with clean gear oil unless the model-specific procedure calls for another lubricant. Start each seal squarely and drive it with a proper installer that contacts the outer metal case or specified installation surface. Never hammer directly on the seal lip or spring area.

Install each seal to the correct depth and orientation. Replace carrier O-rings or gaskets whenever the carrier is removed if they are specified as service parts. A reused, flattened O-ring can undermine an otherwise careful seal job.

Reinstall the carrier, retainers, and fasteners according to the exact Suzuki service specifications. Torque values, locking methods, and sealants are model-dependent. Do not guess at torque, and do not apply sealant where the design relies on an O-ring or gasket instead.

Pressure Test Before Refilling Gear Oil

A pressure and vacuum test is the best final check after you replace Suzuki propeller shaft seals. Test the empty gearcase using the pressure specified for the engine. Monitor for pressure loss and use a soap solution around the propeller shaft area, carrier, drain screws, shift shaft, and other likely leak points if needed.

Vacuum testing adds another useful check because certain seal defects show up under vacuum but not pressure. If the gearcase fails either test, find the leak before filling it with new oil. Replacing gear oil only to discover another leak after a trip wastes time and can expose the gears to water again.

Once the gearcase passes testing, refill it from the lower drain opening until oil flows from the upper vent opening. Install new screw gaskets, tighten the screws to the specified torque, and clean any spilled oil from the housing. Reinstall the propeller with the correct hardware sequence and lubrication on the splines as specified by Suzuki.

Avoid Repeat Seal Failures

After every outing where line is used, inspect behind the propeller. This takes only a few minutes and can prevent the most common source of propeller shaft seal damage. During scheduled lower-unit service, check gear oil for water and pressure test the case when there is any question about its condition.

Use exact-fit new OEM genuine Suzuki seals, O-rings, and hardware matched to your outboard's model and serial number. Al Hawra Marine helps owners and repair shops find Suzuki outboard parts without settling for uncertain aftermarket fitment. Order the parts needed for the complete repair, including the small gaskets that are easy to overlook.

A clean seal installation and a passing pressure test give you more than fresh gear oil - they give your Suzuki gearcase a better chance of staying dry, protected, and ready for the next launch.
