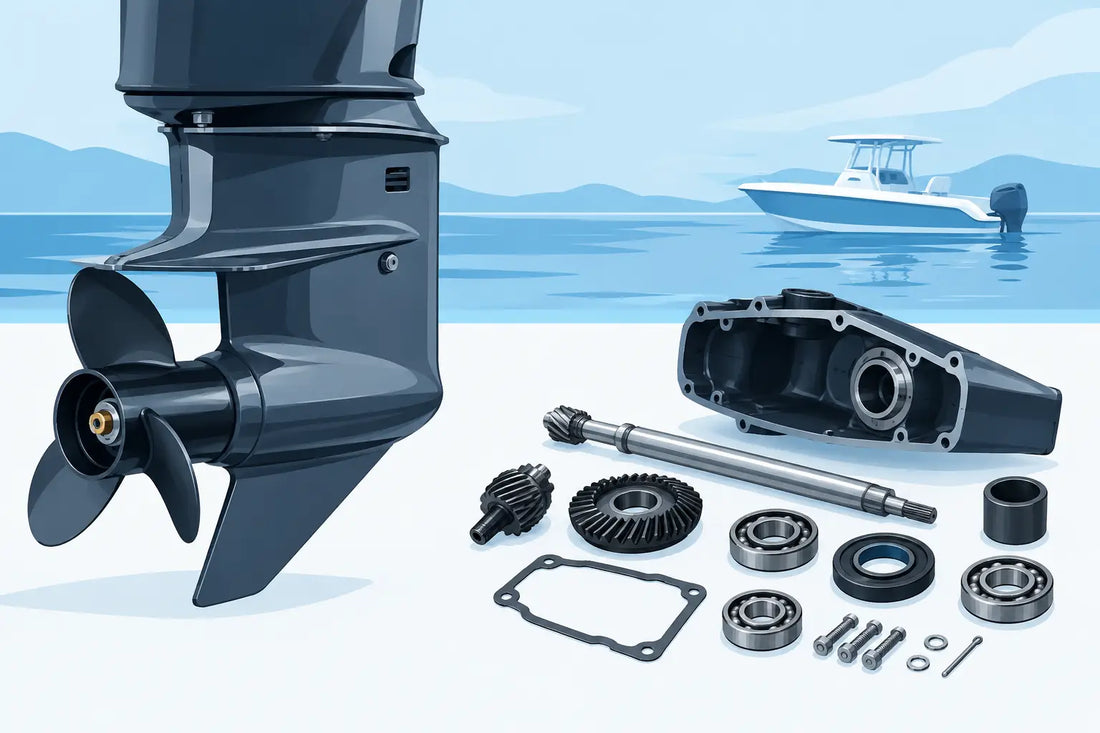

Suzuki Gearcases and the Parts That Keep Them Running

A Suzuki gearcase spends every running hour below the waterline, transferring engine power to the propeller while absorbing impacts, heat, and constant exposure to water. When it develops a leak, vibration, shift problem, or gear noise, the issue can move from a small repair to major lower-unit damage quickly. The right response is not a close-enough replacement part. It is the correct OEM component for your exact Suzuki outboard model.

For boat owners, fishing crews, and repair shops, gearcase work is about protecting uptime. A failed seal can contaminate gear oil. A worn bearing can damage gears. A bent propeller shaft can take out seals and create vibration that makes every trip less reliable. Ordering genuine Suzuki outboard parts by correct fitment helps keep the repair focused, efficient, and built to last.

What a Suzuki Gearcase Does

The gearcase, often called the lower unit, is the housing at the bottom of an outboard. It contains the driveshaft, forward and reverse gears, clutch dog, propeller shaft, bearings, seals, water pump components, and the shift mechanism. Its job is simple in principle: turn vertical engine power into horizontal propeller rotation while allowing the operator to select forward, neutral, or reverse.

In service, it does much more than that. The gearcase holds lubricant under load, supports the propeller shaft, routes cooling water through the water pump, and seals critical internal components from the lake, river, bay, or ocean outside. That is why a lower-unit repair should never be treated as only a cosmetic job. The housing, seals, gears, and shafts all work as one system.

Suzuki uses different gearcase assemblies and internal parts across horsepower ranges, model years, shaft lengths, and drive configurations. A part that looks nearly identical may have a different shaft length, spline count, bearing size, gear ratio, or seal arrangement. Exact model and serial-number fitment matter before you order.

Signs Your Gearcase Needs Attention

Gearcase failures rarely improve on their own. Catching a problem early can save the gears, shafts, and housing from avoidable damage. Check the lower unit at regular service intervals and after any propeller strike or grounding.

Common warning signs include:

• Milky, gray, or foamy gear oil, which can indicate water intrusion
• Gear oil leaking from the propeller shaft, shift shaft, drain plugs, or driveshaft area
• Grinding, slipping, jumping out of gear, or delayed engagement
• Vibration that continues after checking the propeller for visible damage
• A bent propeller shaft, fishing line behind the propeller, or impact damage to the skeg

Milky oil does not always mean the entire gearcase is ruined. It does mean the unit needs to be inspected promptly. Water in the lubricant reduces protection for bearings and gears, and freezing conditions can make the damage worse if trapped water expands inside the housing.

Likewise, a damaged propeller does not automatically require a complete gearcase. But it should trigger a closer inspection. Even a low-speed impact can bend the propeller shaft slightly, nick a seal surface, or crack the housing near the skeg. Continuing to run the engine can turn a seal job into a gear-and-bearing rebuild.

Choosing Parts for Suzuki Gearcases

The correct repair depends on what inspection reveals. Some jobs require a complete gearcase assembly, while others call for a focused replacement of OEM service parts. Replacing only the failed component can control repair costs when the gears and housing are still in good condition. Rebuilding a unit with widespread internal damage may cost more in parts and labor than replacing the assembly.

Seals, O-Rings, and Hardware

Seals are among the most common lower-unit service items. Propeller shaft seals, driveshaft seals, shift shaft seals, drain screw gaskets, and related O-rings keep water out and lubricant in. Their condition is especially important after fishing line wraps around the propeller shaft. Fine line can cut into a seal lip without being obvious from the outside.

Use new OEM gaskets, O-rings, and sealing washers whenever the repair procedure calls for them. Reusing compressed gaskets or substituting an incorrect seal may create a leak that is not visible until the boat is back in service. That is an expensive way to save a few dollars.

Bearings, Bushings, and Gears

Bearing wear often shows up as excessive shaft movement, rumbling, metal debris in the gear oil, or damage to nearby seals. Bearings must match the gearcase design precisely. Clearance, preload, races, and shimming can all affect gear contact and service life.

Forward gears, reverse gears, pinion gears, clutch dogs, and related shims should be evaluated together when internal damage is found. Replacing one visibly damaged gear while ignoring metal contamination or a worn mating surface can lead to repeat failure. A thorough rebuild includes cleaning the housing, inspecting every gear tooth, and following the applicable Suzuki service specifications for setup.

Water Pump Components

The water pump is located in the lower-unit area, so gearcase service is a practical time to inspect or replace the impeller, wear plate, pump housing, gaskets, and related hardware. An impeller can take a set during storage, especially on an engine that sits for long periods. If the gearcase is already removed, delaying this maintenance can mean paying for the same labor twice.

Water pump parts must also match the engine model. Suzuki outboards can use different pump designs even among engines that appear similar externally. Confirm fitment before placing the order.

Propeller Shaft and Driveshaft Parts

A propeller shaft transfers load directly to the propeller, while the driveshaft delivers engine power into the gear set. Damage to either shaft can cause vibration, seal failure, gear wear, or engagement issues. A bent shaft should be measured, not judged by eye alone.

When replacing a shaft, inspect the mating bearings, seals, splines, and surrounding surfaces. Installing a new shaft against worn parts can shorten the life of the repair. OEM components provide the dimensions and material specifications intended for the original Suzuki lower unit.

Repair, Rebuild, or Replace?

There is no single answer for every lower-unit problem. A pressure and vacuum test, lubricant inspection, and careful check of shaft runout give a better picture than symptoms alone.

A seal repair is often the sensible choice when the oil is clean, gears are quiet, and the leak source is identified. A rebuild may be appropriate when the housing is sound but bearings, gears, or the clutch assembly show wear. A complete gearcase replacement becomes more practical when the housing is cracked, the internal gear set is badly damaged, or a prior failure has spread metal throughout the unit.

Labor availability matters too. A professional shop with lower-unit setup tools may rebuild a serviceable gearcase economically. For an owner working against a seasonal deadline, an exact-fit assembly can reduce downtime. The best option is the one that restores reliable operation without cutting corners on components that protect the whole drive system.

Fitment Checks Before You Order

Do not order lower-unit parts based only on horsepower. Start with the engine model and serial number, then verify the component location in the applicable parts diagram. This helps distinguish between model revisions and prevents ordering a part that fits a different production range.

For a complete gearcase or major internal part, confirm shaft length, rotation where applicable, gear ratio, and spline configuration. For seals and water pump parts, verify the engine family and year range. If a part was superseded by Suzuki, use the current genuine replacement number rather than assuming an older number is still correct.

Al Hawra Marine makes it easier to find and order new OEM genuine Suzuki outboard parts for maintenance and repair jobs where correct fitment cannot be left to guesswork. Check your model details before checkout, especially when the boat is down and you need the right part the first time.

Installation Habits That Prevent Repeat Failures

Correct parts are only half of a successful gearcase repair. Cleanliness and installation practices matter just as much. Keep sand, old gasket material, and metal particles away from open housings. Lubricate seal lips as specified, inspect seal contact surfaces for grooves, and use the correct installation tools to avoid deforming new seals.

After assembly, refill with the specified gear lubricant and install new drain and vent screw gaskets when required. A pressure and vacuum test before launching is one of the best ways to catch a sealing problem at the shop instead of on the water. After the first outing, inspect for leaks and monitor shift quality, cooling-water output, and any unusual vibration.

If the propeller took an impact, do not stop at replacing the prop. Inspect the shaft and gearcase, because hidden damage can be the issue that returns later. A few minutes spent checking the lower unit after a strike can protect a far larger investment.

Your Suzuki outboard depends on its gearcase every time the engine is in gear. Order exact-fit OEM parts, address leaks and impacts early, and give the lower unit the same attention you give the powerhead. That is how a repair stays a repair instead of becoming a lost weekend on the water.
