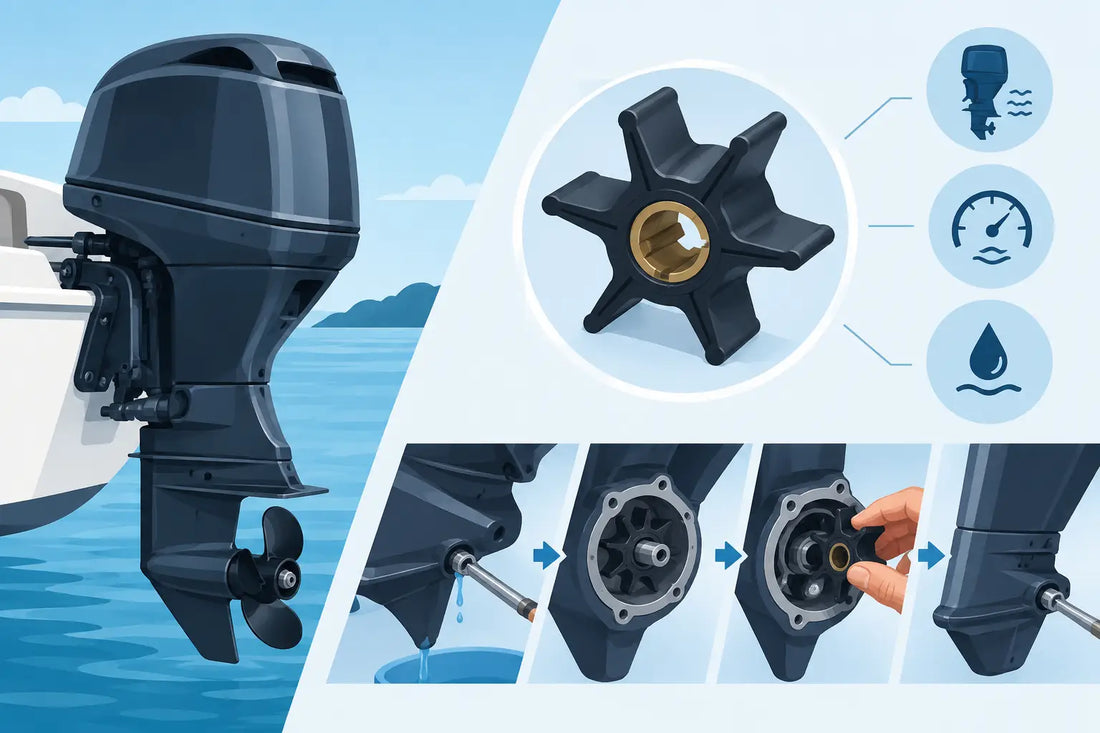

Suzuki Impeller Replacement Signs and Steps
Share
A weak telltale stream can turn a normal day on the water into an overheating alarm fast. Suzuki impeller replacement is routine preventative maintenance, but it is not a job to postpone once cooling-water flow becomes inconsistent, the engine runs hot, or the impeller service interval has passed. Installing the correct OEM water pump components protects one of the most expensive parts of your boat - the outboard.
When a Suzuki Impeller Replacement Is Due
The impeller is a flexible rubber vane inside the lower-unit water pump. As the driveshaft turns, the impeller pulls cooling water through the intake screens and sends it through the engine. Heat, age, dry starts, sand, salt, and long periods of storage gradually reduce its ability to seal and pump efficiently.
Suzuki service intervals vary by engine family, operating conditions, and model year. For many owners, replacing the impeller on a regular annual or biennial maintenance schedule is cheaper than gambling on an older part. A boat used in muddy water, shallow water, or saltwater may need more frequent inspection than one used occasionally in clean freshwater.
Do not rely on the telltale alone. A strong stream is encouraging, but it does not prove that every cooling passage is clear or that the pump is in perfect condition. Still, these signs call for immediate inspection:
- A weak, intermittent, or unusually hot telltale stream
- An overheat warning, reduced-power mode, or high engine temperature indication
- Steam from the telltale or a hot engine odor
- A recent grounding or operation in sand, weeds, or silty water
- Unknown maintenance history on a used Suzuki outboard
- An engine that sat unused for a season or longer
Choose the Right Suzuki Impeller Replacement Parts
Correct fitment matters. Suzuki outboards use different water pump and impeller designs across horsepower ranges, model years, shaft lengths, and engine families. Ordering by horsepower alone can lead to the wrong impeller, gasket, housing, or wear plate arriving at the shop.
Use the engine model and serial number from the identification plate when confirming replacement parts. This is especially important on older outboards, engines with production changes, and motors that may have been repowered or rebuilt. An exact-fit OEM component eliminates the guesswork that comes with generic replacement parts.
A basic repair may require only an impeller. However, opening the pump often reveals wear in related components. A scored wear plate, warped pump housing, damaged cup, flattened gasket, or missing seal can reduce water pressure even with a new impeller installed. If the old impeller has shed vanes, inspect the housing and cooling system carefully. Rubber fragments can move beyond the pump and restrict water flow elsewhere.
For an engine with significant hours, unknown history, or visible pump wear, a complete OEM water pump repair kit is usually the better value. It gives the new impeller a proper sealing surface and avoids reopening the lower unit soon after the repair. Al Hawra Marine helps Suzuki owners find and order new OEM genuine Suzuki outboard parts by exact engine requirements, so the maintenance job starts with the right fit.
Before You Remove the Lower Unit
A clean work area saves time during reassembly. Flush mud and salt from the lower unit, then position the engine upright and secure it so it cannot move. Disconnect the battery if you will be working around electrical connections, and make sure the ignition key is removed.
Have the service manual for your specific Suzuki model available. Lower-unit bolt locations, shift-shaft connections, water-tube alignment, sealant requirements, and torque specifications are not universal. Taking clear photos before disassembly is useful, particularly around the trim tab, shift linkage, and fastener locations.
You will generally need a socket set, screwdrivers, a torque wrench, a drain pan, waterproof marine grease, clean rags, and a water-pump gasket scraper or non-marring cleaning tool. Replace damaged fasteners and avoid using excessive sealant. Loose sealant can enter cooling passages and create the restriction you are trying to prevent.
Check Gear Oil While the Lower Unit Is Off
Lower-unit removal is a smart time to inspect gear oil. Milky oil can indicate water intrusion, while burned-smelling or heavily metallic oil deserves further diagnosis. This does not mean an impeller issue caused the problem, but combining related maintenance can reduce downtime and avoid another teardown later.
Suzuki Impeller Replacement Steps
Start by shifting the engine into the gear position specified in the service manual. On many models, the shift-shaft alignment depends on the selected gear position. Remove the lower-unit mounting bolts, including any bolt hidden beneath the trim tab or anode. Support the gearcase as the final fastener comes out. It is heavier and more awkward than it looks.
Lower the gearcase carefully to disengage it from the driveshaft, shift shaft, and water tube. Never force it down. If it will not release, check for a missed bolt or a model-specific shift linkage connection. Pulling against a binding linkage can create a much larger repair.
With the lower unit removed, locate the water pump at the top of the gearcase. Remove the pump housing screws and lift the housing straight up where possible. Note the orientation of the old impeller vanes, the location of the key, and the stacking order of the cup, plate, gaskets, and seals. A quick photo prevents an avoidable reassembly error.
Inspect the old impeller closely. Cracked vanes, permanently bent blades, melted rubber, or missing sections confirm that replacement was overdue. Inspect the stainless wear plate and pump cup for grooves, corrosion, or heat discoloration. Replace worn parts rather than installing a new impeller against damaged surfaces.
Clean the mating surfaces gently. Install new gaskets and seals in the correct order, then lightly lubricate the inside of the pump housing with the lubricant specified for your kit. Fit the new impeller over the driveshaft key. As the housing slides down, rotate the driveshaft in the direction specified by the service manual so the vanes bend correctly. Do not twist the vanes randomly or force the housing over them.
Tighten housing fasteners evenly to the correct specification. Before reinstalling the lower unit, make sure the water tube will enter its guide properly and that the shift shaft is aligned. Apply marine grease only where the manual calls for it, particularly on driveshaft splines. Keep grease away from the top of the driveshaft if the manufacturer cautions against it, since hydraulic pressure can interfere with proper seating.
Raise the lower unit carefully, guiding the water tube and shift shaft into place. Install fasteners loosely first, then torque them in the specified sequence. Reinstall the trim tab in its marked position if it was removed. A changed trim-tab position can affect steering pull.
Test Cooling Flow Before You Trust the Repair
Run the outboard on properly supplied cooling water using flush muffs or the manufacturer-approved flushing method. Never start the engine dry, even briefly. Watch for a consistent telltale stream and allow the engine to reach normal operating temperature while monitoring for alarms or leaks.
Shift through the gears only when it is safe to do so and confirm the propeller responds correctly. After the first outing, inspect the lower unit for leaks, recheck gear oil if you serviced it, and watch the telltale during normal operation. A weak stream after a new impeller can point to a blocked intake, a misaligned water tube, a damaged pump housing, a thermostat issue, or debris in the cooling passages.
A quality Suzuki impeller replacement is small preventative maintenance with a major payoff: dependable cooling when you are far from the ramp. Order exact OEM parts before the next service window, replace worn pump components when inspection supports it, and keep your Suzuki ready to run when the day calls for it.
